Why you need the DT pigtail splitter for your light bar? it is a common question. at first you need to know
what is a DT connector and Pigtail?
Deutsch DT environmentally sealed connectors are sesigned for cable to cable, cable to board, and cable to device applications. DT connectors are used in Harsh environment applications where even a small degradation in connection maybe critical. when the DT connector wiring with cable, it called the DT Pigtail, when the pigtail with 1 male DT connector 2 female DT connector, that is the DT Splitter.
what are the DT connector applications?
It have wide application. such as the Truck,Bus,Off road, construction, agriculture,Mining,vehicles, Marine boat,Motorcycle etc.
When should i use the DT Connectors and the DT pigtail splitter?
The DT connector provide reliability and performance on the engine or transmission under the hood on motor controllers,solenoid interfaces on the chassis or in the cab. DT connectors offer field proven reliability and rugged quality. the DT design strengths included optional flange mounting, multi-pin arrangements lower cost and design flexibility. DT connectors offer the designer the ability to use multiple size 16 contacts, each with 13 amp continuous capacity with in single shell.
however when you wiring the DT connector to harness, you may realized need to modify or add some device suddenly. it is difficult to re-build the harness system. the DT pigtail splitter is a good way to add extra DT connector without changing the wiring system. it offer the easy way to install additional LED lights. usually the DT pigtail splitter with 1 male to 2 female DT connector, 1 male to 4 female DT connector,1 male to 6 female DT connector.

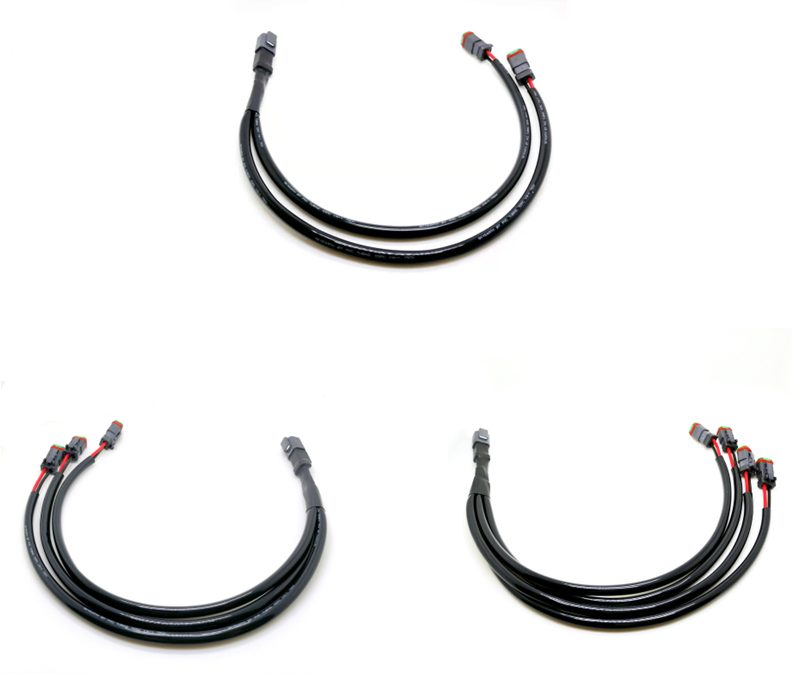

Below photo for display:
The Key Features
What are the DT connectors’ key features?
A: DT Connector Key Features:
- Accepts contact size 16 (13 amps)
- 14-20 AWG
- 2, 3, 4, 6, 8, and 12 cavity arrangements
- In-line, flange, or PCB mount
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedgelocks assure contact alignment and retention
Performance/ Specifications
Q: What is the temperature range for DT connectors?
A: Operating at temperatures -55°C to +125°C
Q: How durable are DT connectors?
A: No electrical or mechanical defects after 100 cycles of engagement and disengagement.
Q: What is the insulation resistance for DT connectors?
A: 1000 megohms minimum at 25°C.
Q: What is the immersion rating for DT connectors?
A: IP68 rating
Q: What is the vibration rating for DT connectors?
A: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.
Q: How much dielectric withstanding voltage for the DT connectors?
A: Current leakage less than 2 milliamps at 1500 volts AC.
Q: What is the fluid resistance for DT connectors?
A: Connectors show no damage when exposed to most fluids used in industrial applications.
Q: How moisture resistant are DT connectors?
A: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.
Q: What are the thermal cycle specifications for DT connectors?
A: No cracking, chipping or leaking after 20 test cycles from -55°C to +125°C.
Materials
Q: What material of the DT connector shells ?
A:The DT connector shells material is the rugged glass which filled PA.
Q: What are DT connector grommets material?
A: DT connector grommets are made of silicone rubber.
Q: What material of DT connector wedgelocks ?
A: DT connector wedgelocks are made of rugged glass filled PBT.
Q: What material of the DT connector receptacle interfacial seals ?
A: The DT connector receptacle interfacial seals are made of silicone rubber.
CUSTOM DT CONNECTOR WIRING
If you need to convert the DT connector to others, it have to custom the convert cable.
Mysteryoffroad offer the custom service with low MOQ and cost. for more article follow our blog
Where to buy the DT connector Pigtail and convert wiring harness:
